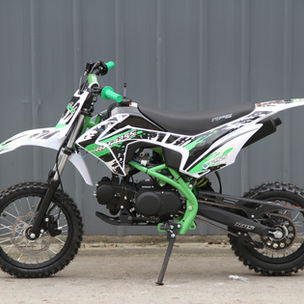

RPS125S
Engine / Drive Train Specifications
Engine: 124 cc, 4-stroke
Cylinder Arrangement: Single cylinder
Max Horsepower: 8.05HP/7500RPM
Max Torque: 7.0ft-lb/6500RPM
Bore × Stroke: 54mm x 54mm
Compression Ratio: 9.0:1
Cooling System: Air cooled
Transmission: 4-Speed, Manual
Start System: Kick Start
Ignition: CDI
Final Drive: Chain drive
Max Speed: 36MPH
Battery: N/A
Frame / Body / Suspension / Brakes
Front Suspension: Dual hydraulic forks and shock absorbers.
Rear Suspension: Swing arm with central shock absorber.
Front Brake: Hydraulic disc brake.
Rear Brake: Hydraulic disc brake.
Front Tires: 2.50-14
Rear Tires: 3.00-12
Capacities / Dimensions
Max Load: 176.37lbs
Gross Weight: 194lbs
Net Weight: 158.73lbs
Overall Length: 63.97inches
Overall Width: 30.7inches
Overall Height: 40.55inches
Carton Dimensions (L × W × H): 58.26x14.96x25.19inches
Seat Height: 30.51inches
Wheelbase: 47.63inches
Ground Clearance: 5.9inches
Gas Tank Capacity: 1.59gal
Fuel Consumption: 102.3mpg
Available colors: Orange, Blue, Red, Green.
