Engine / Drive Train Specifications

Engine: 124cc, 4-stroke

Cylinder Arrangement: Single cylinder

Max Horsepower: 6.57HP/8000RPM

Max Torque: 5.17ft-lb/5500RPM

Bore × Stroke: 52mm x 55.5mm

Compression Ratio: 9.0:1

Cooling System:  Air cooled

Transmission:  Fully automatic with reverse

Start System:  Electric start

Ignition: CDI

Final Drive: Chain drive

Max Limited Speed: 15MPH(Y-10+ ATV)

Battery: 12V5Ah



Frame / Body / Suspension / Brakes

Front Suspension:  Dual A-Arm with dual shock absorbers.

Rear Suspension:  Swing arm with central single shock absorber.

Front Brake: Drum brake.

Rear Brake: Hydraulic disc brake.

Front Tires: 19x7-8

Rear Tires: 18x9.5-8



Capacities / Dimensions

Max Load: 187lbs

Gross Weight: 297.68lbs

Net Weight: 246.96lbs

Overall Length: 62.21inches

Overall Width: 33.46inches

Overall Height: 37.4inches

Carton Dimensions (L × W × H):  56.7x33.07x24.22inches

Seat Height: 27.56inches

Wheelbase: 39.37inches

Ground Clearance: 5.9inches

Gas Tank Capacity: 0.58gal

Fuel Consumption: 87.77mpg

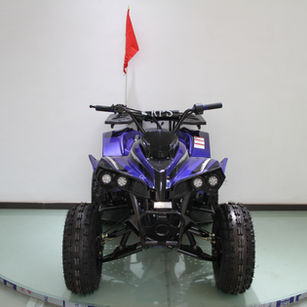

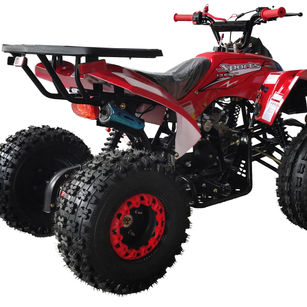

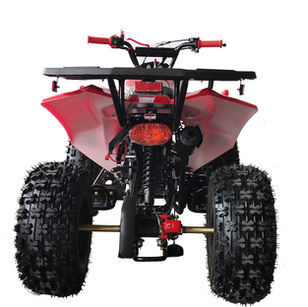

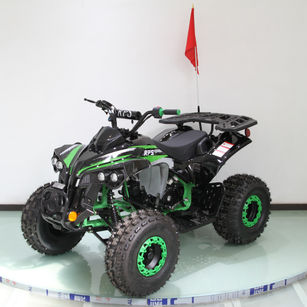

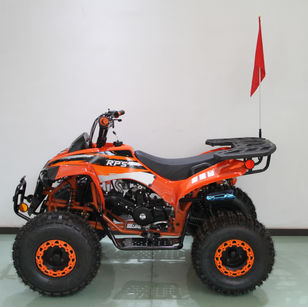

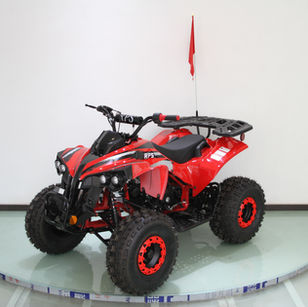

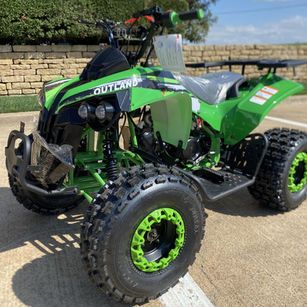

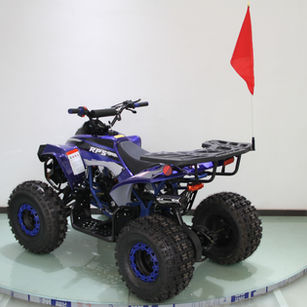

Available colors:  Red/Red, Blue/Blue, Black/Red, Black/Blue, Black/Green, Green/Green, Orange/Orange.
